The BuckHook™ system is ideal for users in the Tower and Substation field, this system uses a shepherd’s hook attached to a fiberglass pole to fit over angle irons. Users will attach a lifeline with a rope grab to the head of the BuckHook™ and then attach a rope grab to oneself to give the user fall protection.

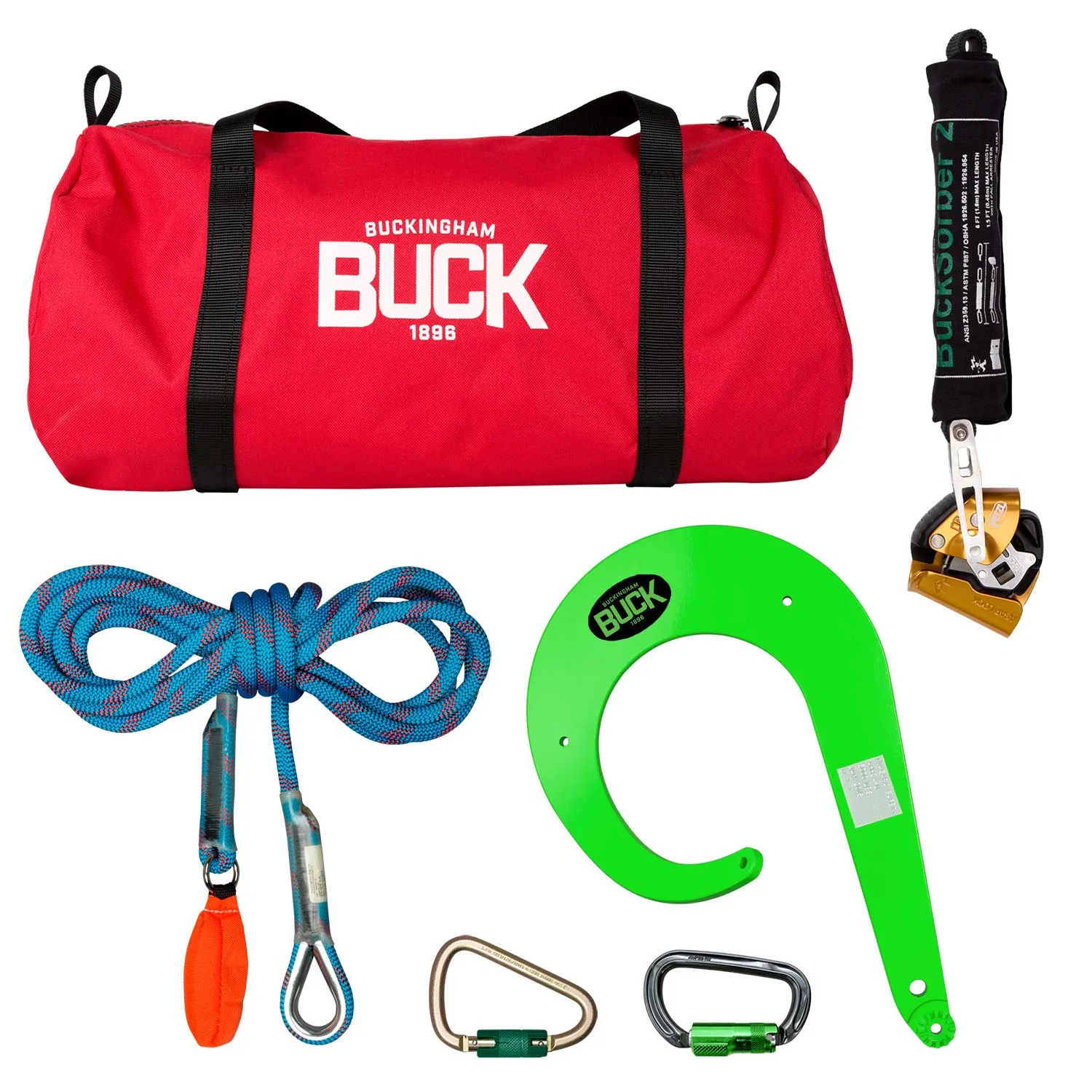

The BuckHook™ KIT includes all the components necessary for a “First man up” to have all the safety and fall protection needed to make a safe ascent. The Kit Includes:

• BuckHook™ (50371U)
• Offers fall protection during ascent and descent.
• LifeLine (39S2Q2)
• A 16ft. Lifeline- 7/16” - 1/2” Semi Static Kernmantle Rope.
• Stitched eye with steel thimble at one end.
• Tight eye with a weighted bag on the other end.
• Mobile Fall Arrestor (5004L3)
• Fits 1/2” & 7/16” Kernmantle rope.
• Made of Light aluminum alloy.
• Rolling Cam for better braking.
• The device moves freely during ascent and descent but locks up in the event of a fall.
• Comes with Steel ANSI rated triple action carabiner.
• Kit Carry Bag (45400R2-18)

Easy Steps for using the BuckHook™ system:

1. Attach a short lifeline and mobile fall arrestor to the sternal attachment on the harness. For connecting lanyards longer than 12" a shock pack should be attached to the dorsal attachment.
2. Using the extension pole with BuckHook™ and 7/16" or ½" non-stretch rope attached, lift and secure hook onto lattice so that the end of the pole is below foot level.
3. Once in place, climb up near BuckHook™.
4. Secure secondary positioning lanyard around the tower leg. Once secure, move BuckHook™ to the next highest point making sure the end of the pole is below the users feet.
5. Once at the worksite user should secure an anchor sling to a suitable anchorage point. The primary vertical lifeline can then be attached to the anchor sling.
6. Once the lifeline is installed, other climbers can connect their harness to a mobile fall arrester and ascend and descend the lifeline.
