• The MG996R servo motor offers an increase in speed, tension and precision over the SG90 and MG90S micro servo motors. This high-speed standard servo motor can rotate 180 degrees (90 in each direction).
• MG996R is compatible with most standard receiver connectors, suitable for Futaba, Hitec, Sanwa, GWS, etc. It is a digital standard servo with excellent performance.

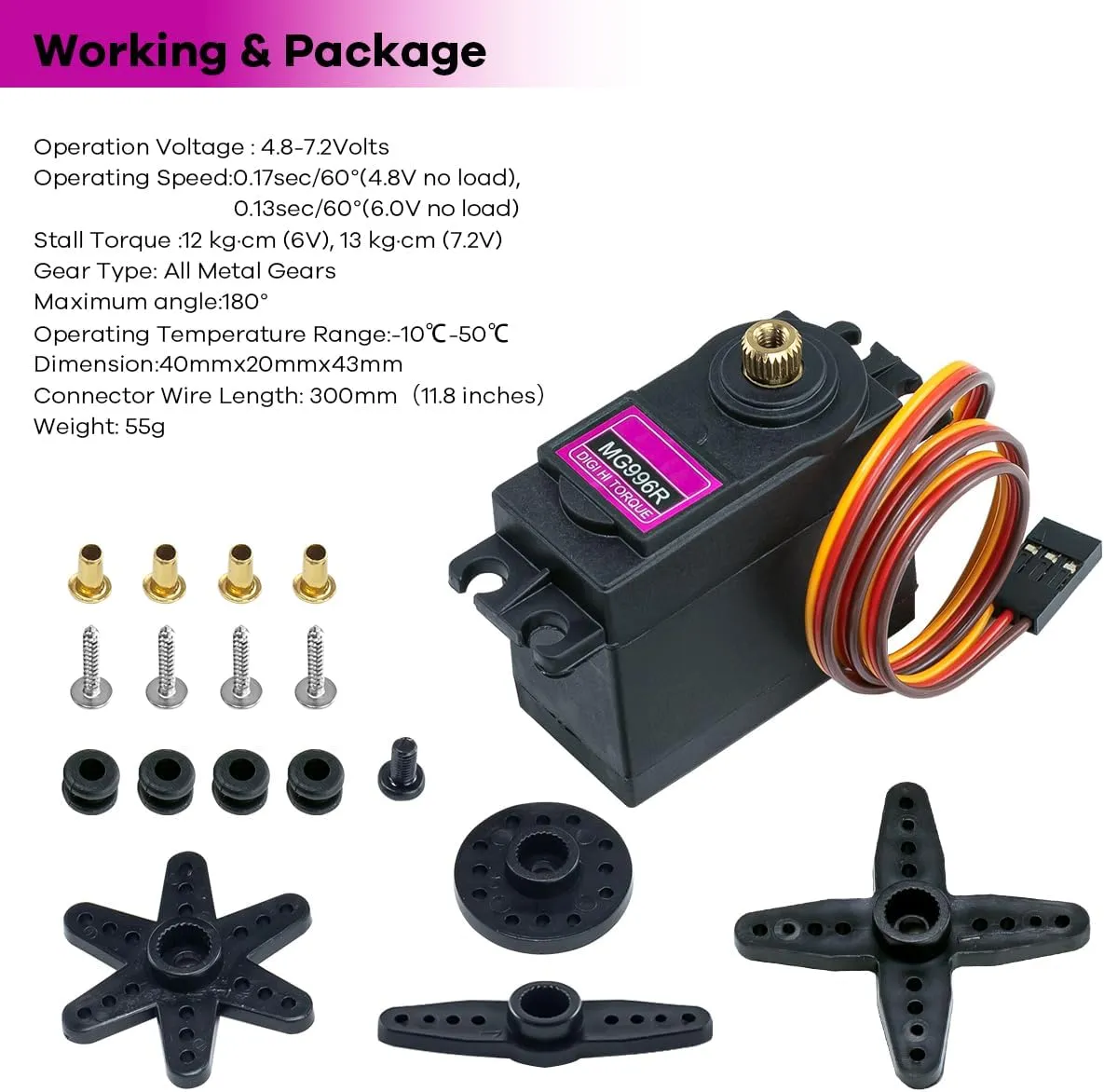

• MG996R servo torque is 6V 12 kg·cm, 7.2V 13 kg·cm. Operating speed: 4.8V no-load 0.17s/60 degrees; 6.0V no-load 0.13s/60 degrees. Recommended voltage: 5V, current use: 3A.

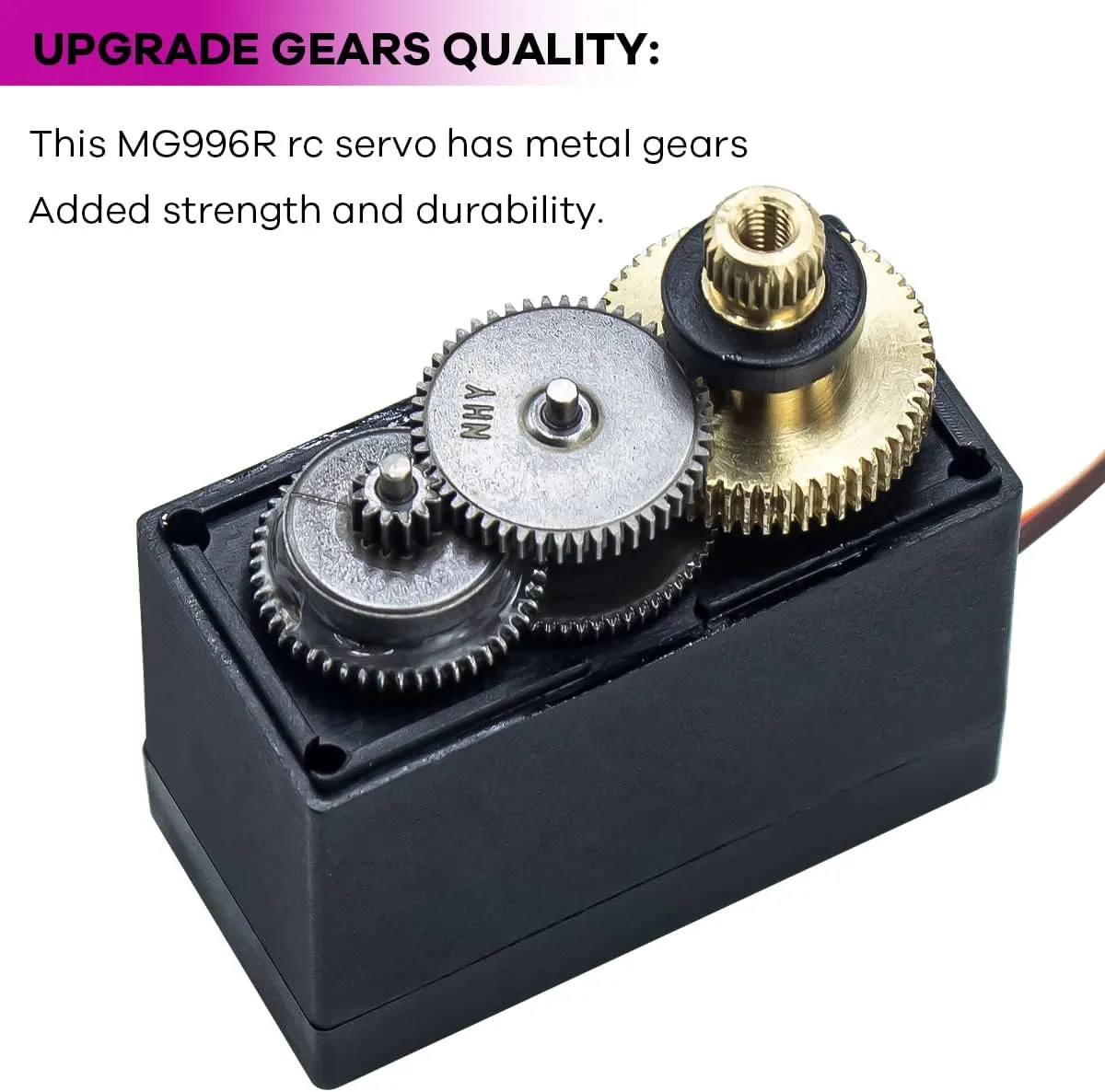

• Stable anti-vibration coreless motor, metal gear, longer service life. External adapter power supply, cable length: about 30CM. Wiring: orange: signal wire, red: positive pole, brown: negative pole.
• Widely used in biped robots, mechanical arms, remote control boats, suitable for 50-90 methanol fixed-wing aircraft and 26-50cc gasoline fixed-wing aircraft and other models.
