Converter

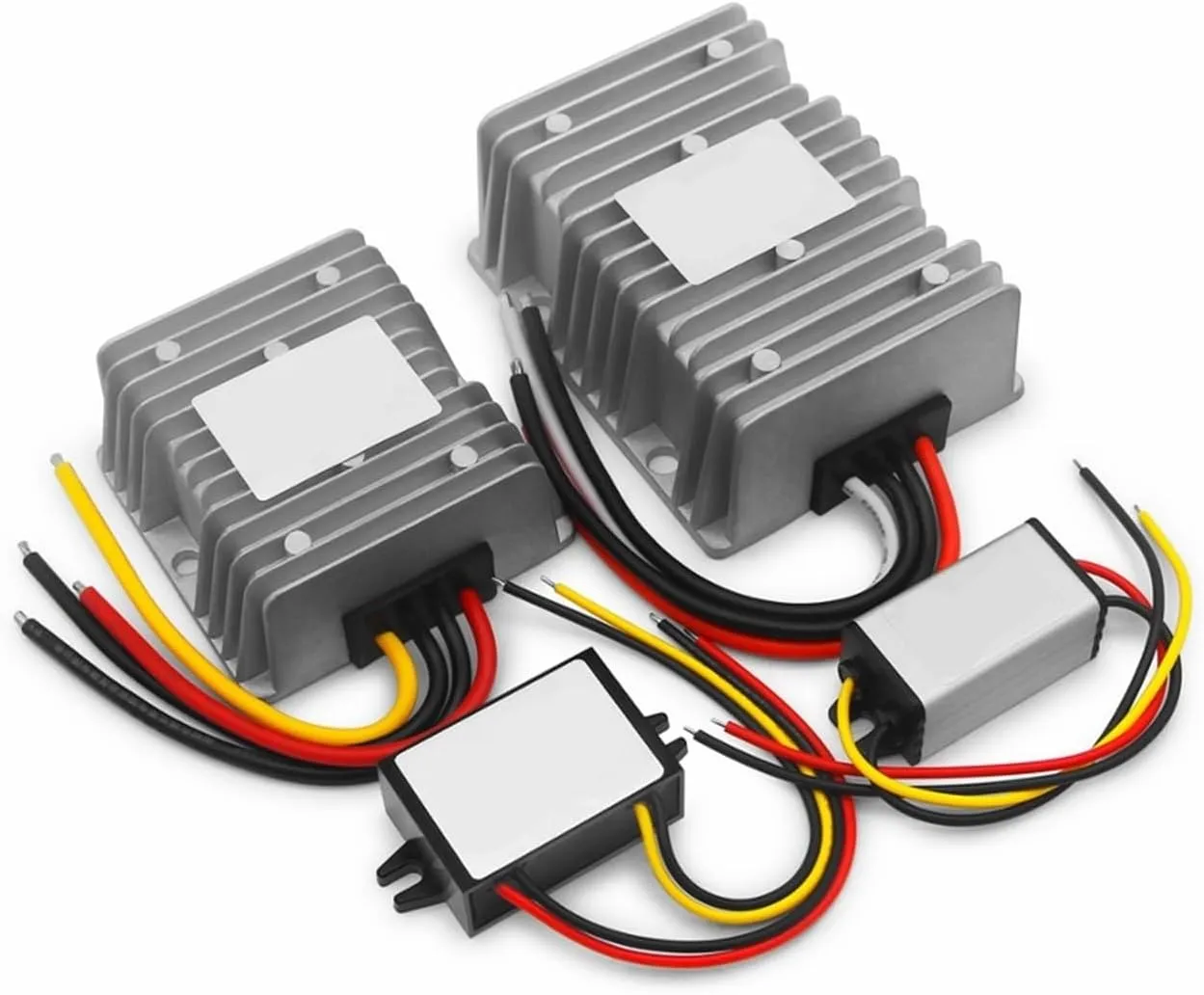

12v 24v to 5v voltage converter 1A 2A 3A 5A 10A 15A 20A 25A 30A 40A step up down 5v voltage reducer
Model No. XW-1224-5-5W~200W
Module Properties Non-isolated Module
Input Voltage 12V 24V
InputVoltage Range 8-40V
Output Voltage 5V
Output Current 1A / 2A / 3A / 5A / 10A /
15A /20A /25A/ 30A/ 40A
Output Power 5W / 10W / 15W/ 25W/ 50W /75W / 100W/ 125W/150W / 200W
Conversion Efficiency>93%
Ripple (Full load test) 40mV
No-loadCurrent (1-10A)3.5mA; (10-30A)25mA ; (40A) 40mA
Working Temperature -40~80
Waterproof Rating IP67
Output 1-5A ABS Plastic 46*27*14mm, 28g, Anti-static Bag
Output 1-5A Aluminum 44*25*22mm, 45g, Anti-static Bag
Output 5A-10A Aluminum 64*57*22mm, 108g, Anti-static Bag
Output 10-30A Aluminum 74*74*32mm, 260g, Anti-static Bag
Output 40A Aluminum 100*80*39mm, 550g, White Box
Attention:
Pls install according to the the label strictly,positive pole and nagative pole can't be reversed, or the module and device might be damaged
To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
This converter can't be used to charge battery.
==========
Output Current : 1-40A
Output Frequency : 43hz
Model Number : XW-1224-5
Output Power : 51 - 100W
Type : DC/DC Converters
Weight : 260g
Size : 74*74*32MM
Output Type : SINGLE
Input voltage : 12V 24V
Input voltage Range : 8-40V
Output Voltage : 5V
Conversion Efficiency :>93%
Working Temperature : -30°C to 80°C
Shell : Aluminum
